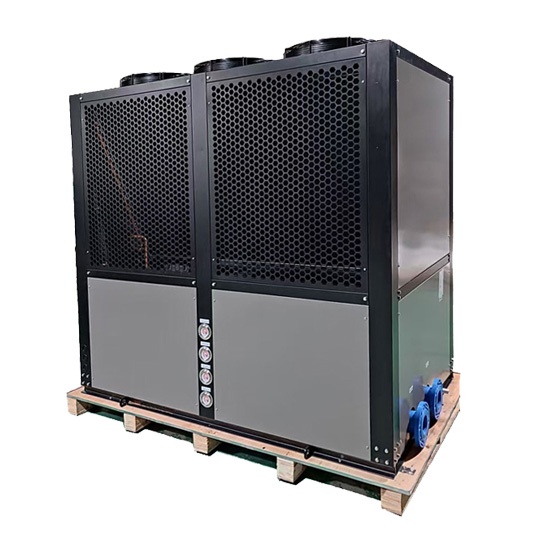

Model:OT-30W/DY

Parameter:

Model		OT-30W/DY
Power supply	V/Ph/Hz	380~415/3/50
Heating capacity	kW	124
Heating capacity	BTU	423208
Heating power input	kW	18.7
Cooling capacity	kW	92
Cooling capacity	BTU	313993
Cooling power input	kW	22
Refrigerant	Type	R410A
Compressor	Type	Copeland Scroll
Compressor	Number	4
Fan	Qty	6
Required water flow rate	m3/h	45
Water connection	mm	75
Max. current	A	74
Noise	dB (A)	<68
Max. water temp.	℃	45
Operation temp. range	℃	-10℃-45℃
Net weight	kg	893
Net size(L/W/H)	mm	2000×1340×1976
Heating: Ambient temp.(DB/WB): 26℃ /18℃ ; Water temp.(in /out): 26℃/28℃; Cooling: Ambient temp.(DB/WB): 30℃ ; Water temp.(out): 27℃;
