Products >> Swimming pool series >>

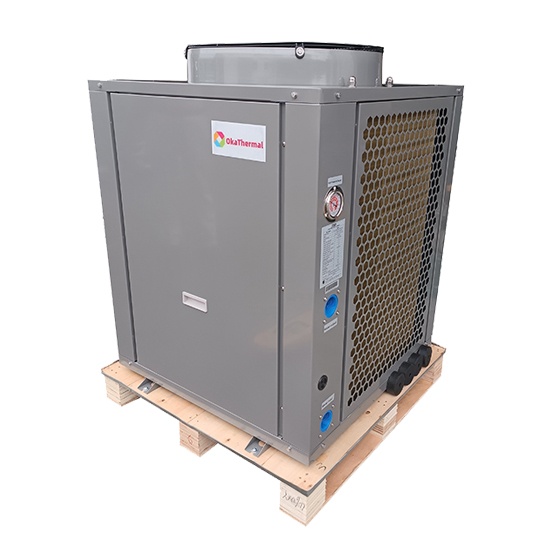

Model:DE-46W/DY

Specification:

Model		DE-46W/DY	DE-52W/DY
Power supply	V/Ph/Hz	380/3/50	380/3/50
Heating capacity	kW	18	20
Heating capacity	BTU	61414	68238
Power input by heating	kW	3.8	4.4
Cooling capacity	kW	13.5	14
Cooling capacity	BTU	46060	47766
Power input by cooling	kW	4.8	5.1
Refrigerant		R410A	R410A
Required hot water flow rate	m3/h	7.5	9
Water connection diameter	mm	50	50
Noise	dB(A)	≤52	≤58
Max. current	A	13	15
Compressor	Type	Scroll	Scroll
Fan	Qty	2	2
Rated outlet water temp.	℃	28	28
Max. water temp.	℃	45	45
Operation temp. range	℃	-10-45	-10-45
Net weight	kg	110	110
Net size(L/W/H)	mm	770X680X930	770X680X930
Heating by Ambient temp.(DB/WB):20℃ /15℃ and Water temp.(in /out): 15℃/28℃;
Cooling by Ambient temp.(DB/WB):35℃ /24℃ and Water temp.in 28℃;
