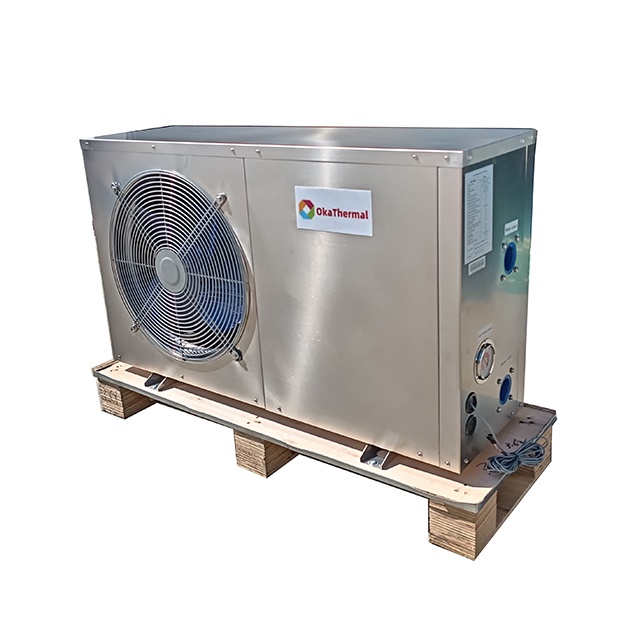

Model:DE-13W/CY

Specification:

Model		DE-13W/CY	DE-18W/CY	DE-27W/CY	DE-27W/DY	DE-36W/CY
Power supply	V/Ph/Hz	220/1/50	220/1/50	220/1/50	380/3/50	380/3/50
Heating capacity	kW	4.8	7.1	11	11.5	14.5
Heating capacity	BTU	16377	24224	37531	39237	49472
Power input by heating	kW	1.1	1.5	2.3	2.4	3.1
Cooling capacity	kW	3.7	5.3	7.5	7.8	10.5
Cooling capacity	BTU	12624	18083	25589	26613	35825
Power input by cooling	kW	1.4	1.9	2.8	2.9	3.9
Refrigerant		R410A	R410A	R410A	R410A	R410A
Required hot water flow rate	m3/h	2	3	4.5	4.5	6
Water connection diameter	mm	50	50	50	50	50
Noise	dB(A)	≤48	≤48	≤48	≤56	≤50
Max. current	A	9.5	13	7.2	7.5	10
Compressor	Type	Rotary	Rotary	Rotary	Scroll	Scroll
Fan	Qty	1	1	1	1	1
Rated outlet water temp.	℃	28	28	28	28	28
Max. water temp.	℃	45	45	45	45	45
Operation temp. range	℃	-10-45	-10-45	-10-45	-10-45	-10-45
Net weight	kg	58	67	84	90	95
Net size(L/W/H)	mm	1005X350X610	1005X350X610	1115X485X715	770X690X800	1115X485X715
Heating by Ambient temp.(DB/WB):20℃ /15℃ and Water temp.(in /out): 15℃/28℃;
Cooling by Ambient temp.(DB/WB):35℃ /24℃ and Water temp.in 28℃;
