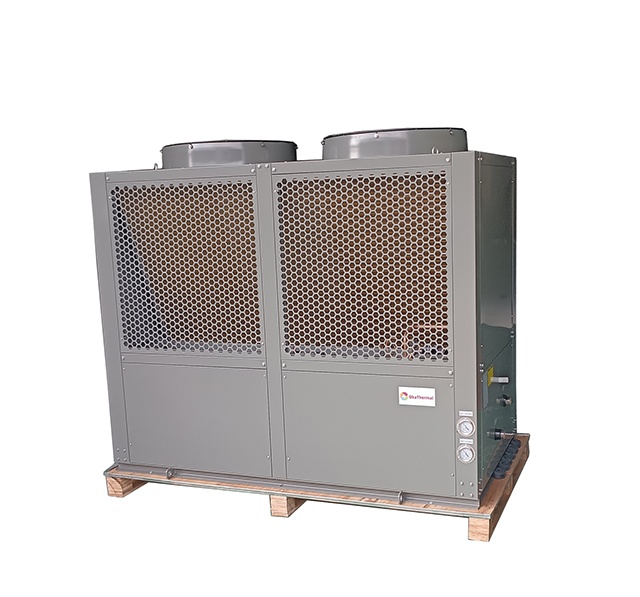

Model:DE-150W/D

Product No.：Commercial air to water heat pump
Online Inquiry

Specification:

Model		DE-75W/D	DE-92W/D	DE-105W/D	DE-150W/D	DE-180W/D	DE-225W/D	DE-270W/D	DE-360W/D
Power supply	(V/ph/Hz)	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50
Heating capacity	(kw)	34	43	47	65	85	94	127	172
Heating capacity	(BTU)	102354	129448	141489	195677	255885	282979	426621	517791
Rated power input	(kw)	7.2	9.1	10.2	14.0	18.0	20.0	27.0	36.5
Test condition	*Ambient temp.(Dry Bulb/Wet Bulb): 30℃ /22℃, Water temp.(in/out): 15℃/55℃.
Heating capacity	(kw)	30	38	42	57	74.5	83	110	158
Heating capacity	(BTU)	102354	129648	143296	194473	254179	283179	375426	539064
Rated power input	(kw)	7.1	9.0	10.0	13.6	17.7	19.8	26.2	36.2
Test condition	*Ambient temp.(Dry Bulb/Wet Bulb): 20℃ /15℃, Water temp.(in/out): 15℃/55℃.
Heating capacity	(kw)	24	30.5	33	46	60	66	92	122
Heating capacity	(BTU)	72250	91818	99344	138479	180625	198687	276958	367270
Rated power input	(kw)	6.4	8.2	8.6	12.5	16	17	25	33
Test condition	**Ambient temp.(Dry Bulb/Wet Bulb): 7℃ /6℃, Water temp.(in/out): 30℃/35℃.
Refrigerant		R410A
Compressor	(type)	Scroll
Compressor	(number)	2	2	2	3	4	4	6	8
Fan	(type)	Axial flow type with Nylon fan blade
	(discharging)	Vertical
	(number)	1	1	1	3	2	2	2	4
	(air flow)(m3/h)	7400	7400	11000	5000*3	7400*2	12000*2	12000*2	12000*4
Evaporator	(type)	Aluminium/Cu lamellar tube evaporator
Condenser	(type)	Coaxial coil heat exchanger (Copper Tube-in- Steel Tube)
Throttling device		Emerson thermal expansion valve
Controller		Indoor Digital Controller
Required hot water flow	(m3/h)	6	8	9.6	12	16	20	24	32
Water connection		G1-1/4"	G1-1/4"	G1-1/4"	G2"	G2"	G2-1/2"	G2-1/2"	G3"
Noise	dB(A)	≤60	≤60	≤60	≤62	≤64	≤65	≤65	≤68
Max. current	(A)	21	25	28.5	37.5	49	62	73.5	98
Level again electric shock		I	I	I	I	I	I	I	I
Water proof		IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4
Max. water temp.	（℃）	60	60	60	60	60	60	60	60
Operation temp. range	(℃)	-10-45	-10-45	-10-45	-10-45	-10-45	-10-45	-10-45	-10-45
Net weight	(kg)	260	270	295	495	622	755	893	1500
Net size	(mm)	1270X950X1225	1270X950X1225	1200X970X1425	2140X1280X1670	2200X1315X2080	2400X1300X2150	2400X1300X2150	2400X1900X2150
