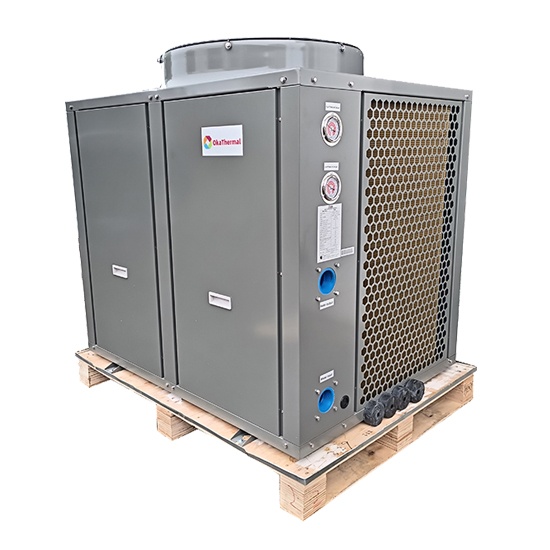

Model:DE-92W/DW

Specification:

Model		DE-92W/DW	DE-180W/DW
Power supply	V/Ph/Hz	380/3/50	380/3/50
1)Heating capacity	kW	41.5	82
1)Heating capacity	BTU	141591	279770
Rated power input	kW	9.2	18
2)Heating capacity	kW	32.5	65
2)Heating capacity	BTU	110885	221769
Rated power input	kW	8.3	16.2
3)Heating capacity	kW	28.2	57
3)Heating capacity	BTU	96214	194475
Rated power input	kW	8.2	16
4)Heating capacity	kW	20.5	41
4)Heating capacity	BTU	69943	139885
Rated power input	kW	7.6	14.5
Refrigerant		R407C	R407C
Compressor	Type	Scroll	Scroll
Fan	Qty	1	2
Required water flow rate	m3/h	8	16
Water connection		G1-1/4"	G2"
Max. current	A	25	49
Noise	dB (A)	≤65	≤68
Max. water temp.	℃	60	60
Operation temp. range	℃	-25-45	-25-45
Net weight	kg	320	680
Net size(L/W/H)	mm	1270X1000X1425	2460X1315X2070
1)Heating by Ambient temp.(DB/WB): 20℃ /15℃ and Water temp.(in /out): 15℃/55℃;
2)Heating by Ambient temp.: 7℃ and Water temp.(in /out): 30℃/35℃;
3)Heating by Ambient temp.: 2℃ and Water temp.(in /out): 30℃/35℃;
4)Heating by Ambient temp.: -10℃ and Water temp.(in /out): 30℃/35℃;
