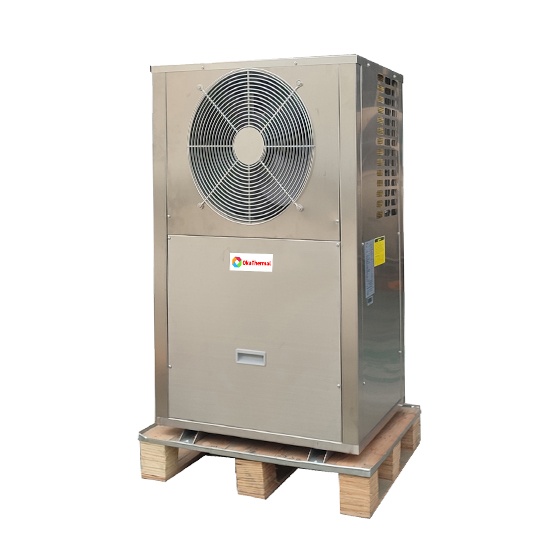

Model:DE-27/CW

Specification:

Model		DE-27W/CW
Power supply	V/Ph/Hz	380/3/50
1)Heating capacity	kW	12
1)Heating capacity	BTU	40942
Rated power input	kW	2.7
2)Heating capacity	kW	10.3
2)Heating capacity	BTU	35142
Rated power input	kW	2.6
3)Heating capacity	kW	9.1
3)Heating capacity	BTU	31048
Rated power input	kW	2.6
4)Heating capacity	kW	6.6
4)Heating capacity	BTU	22518
Rated power input	kW	2.5
Refrigerant		R407C
Compressor	Type	Scroll
Fan	Qty	1
Required water flow rate	m3/h	2.2
Water connection		G1"
Max. current	A	7.5
Noise	dB (A)	≤60
Max. water temp.	℃	60
Operation temp. range	℃	-25-45
Net weight	kg	130
Net size(L/W/H)	mm	820X570X1485
1)Heating by Ambient temp.(DB/WB): 20℃ /15℃ and Water temp.(in /out): 15℃/55℃;
2)Heating by Ambient temp.: 7℃ and Water temp.(in /out): 30℃/35℃;
3)Heating by Ambient temp.: 2℃ and Water temp.(in /out): 30℃/35℃;
4)Heating by Ambient temp.: -10℃ and Water temp.(in /out): 30℃/35℃;
