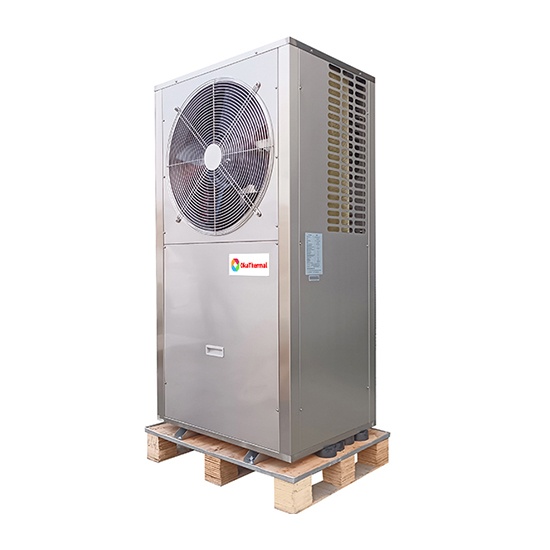

Model:DE-46W/CW
- Product No.:Low ambient temp series
Specification:
Model | DE-46W/CW | |
Power supply | V/Ph/Hz | 380/3/50 |
1)Heating capacity | kW | 20.5 |
BTU | 69943 | |
Rated power input | kW | 4.6 |
2)Heating capacity | kW | 16.5 |
BTU | 56295 | |
Rated power input | kW | 4.2 |
3)Heating capacity | kW | 14.4 |
BTU | 49130 | |
Rated power input | kW | 4.15 |
4)Heating capacity | kW | 10.2 |
BTU | 34801 | |
Rated power input | kW | 3.8 |
Refrigerant | R407C | |
Compressor | Type | Scroll |
Fan | Qty | 1 |
Required water flow rate | m3/h | 4 |
Water connection | G1" | |
Max. current | A | 13 |
Noise | dB (A) | ≤64 |
Max. water temp. | ℃ | 60 |
Operation temp. range | ℃ | -25-45 |
Net weight | kg | 270 |
Net size(L/W/H) | mm | 1100X570X1650 |
1)Heating by Ambient temp.(DB/WB): 20℃ /15℃ and Water temp.(in /out): 15℃/55℃; | ||
2)Heating by Ambient temp.: 7℃ and Water temp.(in /out): 30℃/35℃; | ||
3)Heating by Ambient temp.: 2℃ and Water temp.(in /out): 30℃/35℃; | ||
4)Heating by Ambient temp.: -10℃ and Water temp.(in /out): 30℃/35℃; |
