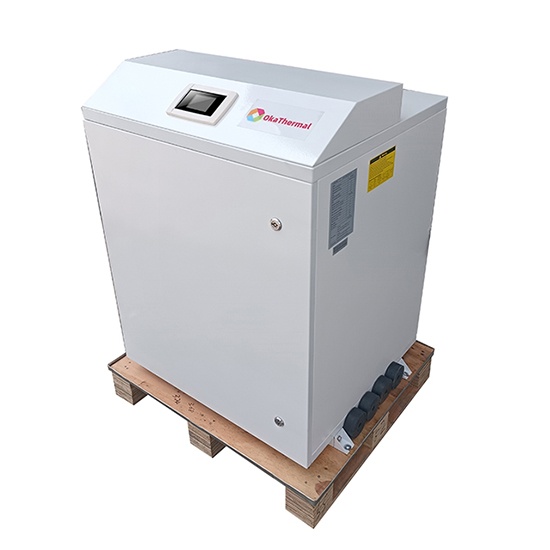

DE-36W/S;DE-46W/S;DE-52W/S

Model		DE-27W/S	DE-36W/S	DE-46W/S	DE-52W/S
Power supply	V/Ph/Hz	380/3/50	380/3/50	380/3/50	380/3/50
1)Heating capacity	kW	12	16.5	20.5	24
1)Heating capacity	BTU	40942	56295	69942	81884
Rated power input	kW	2.7	3.6	4.6	5.2
2)Heating capacity	kW	10.5	14.8	18.5	22
2)Heating capacity	BTU	35824	50495	63119	75060
Rated power input	kW	2.2	3	3.7	4.5
3)Cooling capacity	kW	9	12	15	18
3)Cooling capacity	BTU	30707	40942	51177	61413
Rated power input	kW	2.1	2.8	3.6	4.2
Refrigerant		R410A	R410A	R410A	R410A
Compressor	Type	Scroll	Scroll	Scroll	Scroll
Required hot water flow rate	m3/h	2.2	3.2	4	5
Required water source flow rate	m3/h	1.8	2.45	3.2	4
water connection		G1"	G1"	G1"	G1"
Noise	dB(A)	≤40	≤40	≤42	≤42
Max current	A	7.5	10	13	15
Max.water output temp.	℃	60	60	60	60
Water source temp. range	℃	5~35	5~35	5~35	5~35
Net weight	kg	80	100	120	140
Net size(L/W/H)	mm	690X620X840	790X620X850	790X620X850	790X620X850
1)Heating by Water Source temp.(In/Out):15℃ /7℃ and Water temp. (In/Out):15℃/55℃;
2)Heating by Water Source temp.(In/Out):10℃ /7℃ and Water temp. (In/Out):30℃/35℃;
3)Cooling by Water Source temp.(In/Out):25℃ /30℃ and Water temp. (In/Out):12℃/7℃;
