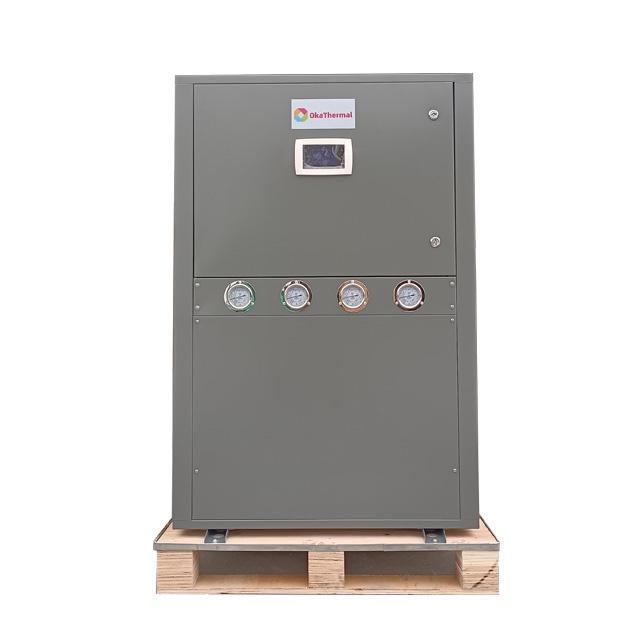

Model:DE-92W/S

Specification:

Model		DE-75W/S	DE-92W/S	DE-105W/S
Power supply	V/Ph/Hz	380/3/50	380/3/50	380/3/50
1)Heating capacity	kW	31	42	45
1)Heating capacity	BTU	105766	143296	153532
Rated power input	kW	7.5	9.2	11
2)Heating capacity	kW	28.5	37.5	40
2)Heating capacity	BTU	97237	127943	136473
Rated power input	kW	5.8	7.2	7.8
3)Cooling capacity	kW	24	30	33
3)Cooling capacity	BTU	81884	102355	112590
Rated power input	kW	5.7	7.1	10
Refrigerant		R410A	R410A	R410A
Compressor	Type	Scroll	Scroll	Scroll
Required hot water flow rate	m3/h	7	8	9.5
Required water source flow rate	m3/h	5.6	6.4	7.6
water connection		G1-1/4"	G1-1/4"	G1-1/4"
Noise	dB(A)	≤44	≤44	≤44
Max current	A	21	25	29
Max.water output temp.	℃	60	60	60
Water source temp. range	℃	5~35	5~35	5~35
Net weight	kg	220	250	250
Net size(L/W/H)	mm	700X720X1290	700X720X1290	780X770X1370
1)Heating by Water Source temp.(In/Out):15℃ /7℃ and Water temp. (In/Out):15℃/55℃;
2)Heating by Water Source temp.(In/Out):10℃ /7℃ and Water temp. (In/Out):30℃/35℃;
3)Cooling by Water Source temp.(In/Out):25℃ /30℃ and Water temp. (In/Out):12℃/7℃;
