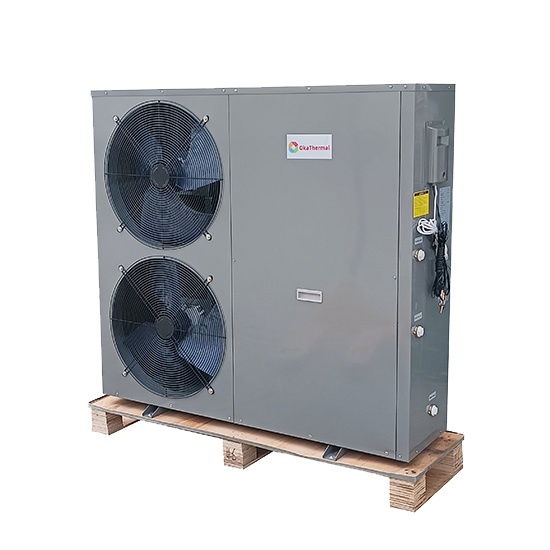

Model:DE-46WB

Specification:

Model		DE-46WB
Power supply	(V/ph/Hz)	380/3/50
Heating capacity	(kw)	22
Heating capacity	(BTU)	75085
Rated power input	(kw)	4.68
Water feed speed	(L/h)	473
*Test condition	*Ambient temp.(Dry Bulb/Wet Bulb): 30℃ /22℃, Water temp.(in /out): 15℃/55℃.
Heating capacity	(kw)	17.5
Heating capacity	(BTU)	59710
Rated power input	(kw)	4.6
Water feed speed	(L/h)	383
*Test condition	*Ambient temp.(Dry Bulb/Wet Bulb): 20℃ /15℃, Water temp.(in /out): 15℃/55℃.
Heating capacity	(kw)	14.1
Heating capacity	(BTU)	48109
Rated power input(kw)		3.9
**Test condition	**Ambient temp.(Dry Bulb/Wet Bulb): 7℃ /6℃, Water temp.(in /out): 30℃/35℃.
Refrigerant		R417a/R410A
Refrigerant weight	(g)	/
Compressor	(type)	Scroll
Compressor	(number)	2
Fan	(type)	Axial flow type with Nylon fan blade
	(discharging)	Horizontal
	(number)	2
	(air flow)(m3/h)	3500*2
Evaporator	(type)	Aluminium/Cu lamellar tube evaporator
Condenser	(type)	Coaxial coil heat exchanger (Copper Tube-in- Steel Tube)
Throttling device		Emerson thermal expansion valve
Controller		Indoor Digital Controller
Required hot water flow rate	(m3/h)	4
Water connection		G1"
Suggested tank capacity	L	1000
Noise	dB(A)	≤52
Max. current	(A)	10
Level again electric shock		I
Water proof		IPX4
Max. water temp.	（℃）	60
Operation temp. range	(℃)	-10-45
Net weight	(kg)	110
Net size-(LWH)	(mm)	13454251260
