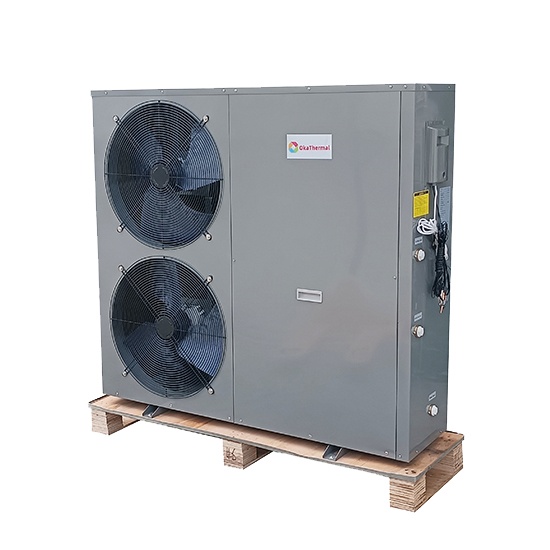

OT-05W/DC

Product No.：DC inverter heat pump
Online Inquiry

Product description:
1.Automatically adjust outlet water temp. upon the outdoor ambient temp.
2.Automatically adjust heating or cooling mode upon the outdoor ambient temp or indoor signal.
3.Modbus communication available.
4.Wifi operation available

Parameter:

Model			OT-05W/DC
Power Source		V/Hz/Ph	220-240/50/1
Refrigerant			R410a/R290
Max. Heating Capacity (1)		kW	20
C.O.P (1)		W/W	4.72
Heating Capacity Min./Max.(1)		kW	9.1	19.8
Heating Power Input Min./Max.(1)		kW	1.54	4.2
C.O.P Min./Max. (1)		W/W	4.76	5.95
Max. Heating Capacity (2)		kW	19.3
C.O.P (2)		W/W	3.86
Heating Capacity Min./Max.(2)		kW	8.8	19.1
Heating power input Min./Max.(2)		kW	1.9	5.1
C.O.P Min./Max. (2)		W/W	3.8	4.51
Max. Cooling Capacity (3)		kW	18
E.E.R (3)		W/W	3.7
Cooling Capacity Min./Max.(3)		kW	8.39	18.24
Cooling Power Input Min./Max.(3)		kW	1.9	5.8
E.E.R Min./Max. (3)		W/W	3.15	4.42
Max. Cooling Capacity (4)		kW	14.5
E.E.R (4)		W/W	2.81
Cooling Capacity Min./Max.(4)		kW	6.62	14.4
Cooling Power Input Min./Max.(4)		kW	1.7	5.4
E.E.R Min./Max. (4)		W/W	2.68	3.89
Rated Current		A	21
Max Current		A	30
Compressor	Type		Twin Rotary
Fan	Quantity		2
	Airflow	m3/h	5000
	Rated power	W	200
Condenser	Type		Plate Heat Exchanger
	Pressure Drop	kPa	25
	Piping Connection	Inch	G1"
Noise Level		dB(A)	60
Net Dimension(L×D×H)		mm	10604551400
Net Weight		Kg	120
(1) Heating condition: water inlet/outlet temperature: 30℃/35℃, Ambient temperature: DB 7℃/WB 6℃;
(2) Heating condition: water inlet/outlet temperature: 40℃/45℃, Ambient temperature: DB 7℃/WB 6℃;
(3) Cooling condition: water inlet/outlet temperature: 23℃/18℃, Ambient temperature: DB35℃/WB24℃;
(4) Cooling condition: water inlet/outlet temperature: 12℃/7℃, Ambient temperature: DB35℃/WB24℃.
