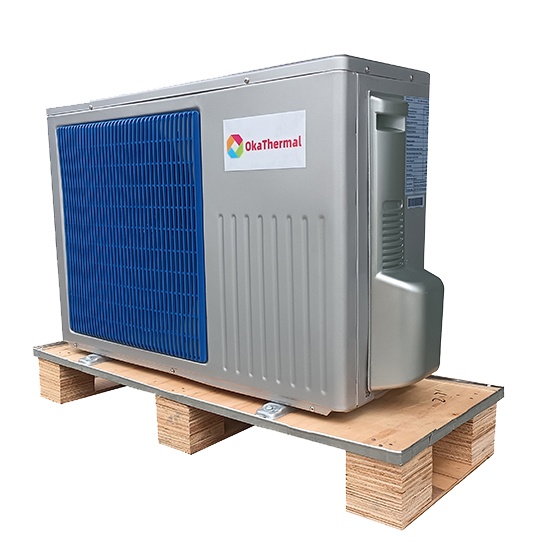

Model:DE-300LW/AP
- Product No.:Split heat pump
Specification:
Model | DE-100LW/AP DE-150LW/AP | DE-200LW/BP DE-300LW/BP | DE-400LW/CP DE-500LW/CP | ||
Power supply | V/Ph/Hz | 220/1/50 | 220/1/50 | 220/1/50 | |
Heating capacity | kW | 3.6 | 3.6 | 7.6 | |
BTU | 12282 | 12282 | 25930 | ||
Rated power input | kW | 0.85 | 0.85 | 1.8 | |
Water feed speed | L/h | 80 | 80 | 160 | |
Refrigerant | R410A | R410A | R410A | ||
Refrigerant weight | g | 850 | 850 | 1400 | |
Compressor | Type | Rotary | Rotary | Rotary | |
Fan | Qty | 1 | 1 | 1 | |
Noise dB(A) | ≤45 | ≤45 | ≤50 | ||
Max. current (A) | 7 | 7 | 13 | ||
Level again electric shock | I | I | I | ||
Water proof | IPX4 | IPX4 | IPX4 | ||
Max. water temp. | ℃ | 60 | 60 | 60 | |
Operation temp. range | ℃ | -10-45 | -10-45 | -10-45 | |
Heat pump unit | Net weight | kg | 30 | 30 | 40 |
Net size(L/W/H) | mm | 800X260X530 | 800X260X530 | 800X260X530 | |
Water tank | Net weight | kg | 25 | 35/47/65 | 65/80/110 |
Net size | mm | φ470X1010 Φ470x1470 |
φ560X1250 φ470X1780 |
Φ700x1517 φ700X1870 | |
Water connection | G1/2" | G1/2" | G1/2";G3/4" | ||
Refrigerant connection pipes diameter | mm | φ6.35 & φ9.52 | φ6.35 & φ9.52 | φ9.52 & φ12.7 | |
Heating by Ambient temp.(DB/WB): 20℃ /15℃ and Water temp.(in/out): 15℃/55℃; |
