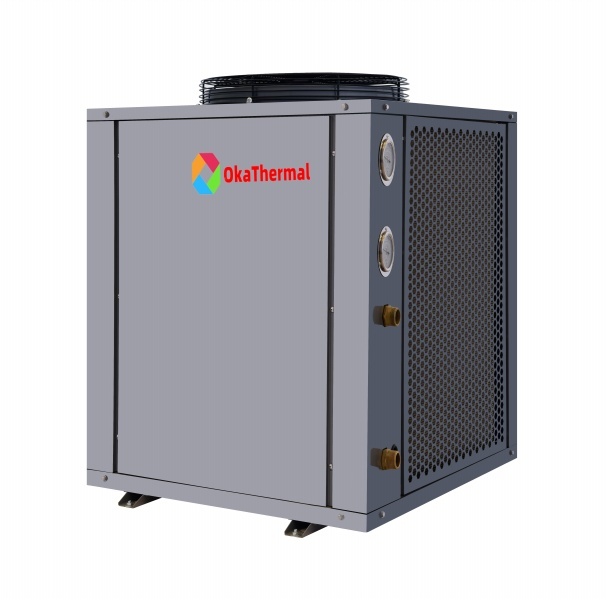

Model:DE-27W/D

Product No.：Commercial air to water heat pump
Online Inquiry

Specification:

Model		DE-27W/C	DE-36W/C	DE-27W/D	DE-36W/D
Power supply	(V/ph/Hz)	380/3/50	380/3/50	380/3/50	380/3/50
Heating capacity	(kw)	13	19	13	19
Heating capacity	(BTU)	35824	52358	35824	52358
Rated power input	(kw)	2.8	4.0	2.8	4.0
Test condition		*Ambient temp.(Dry Bulb/Wet Bulb): 30℃ /22℃, Water temp.(in/out): 15℃/55℃.
Heating capacity	(kw)	10.5	15	10.5	15
Heating capacity	(BTU)	35824	51177	35824	51177
Rated power input	(kw)	2.6	3.8	2.6	3.8
Test condition		*Ambient temp.(Dry Bulb/Wet Bulb): 20℃ /15℃, Water temp.(in/out): 15℃/55℃.
Heating capacity	(kw)	8.5	12	8.5	12
Heating capacity	(BTU)	23423	33068	23423	33068
Rated power input	(kw)	2.4	3.2	2.5	3.2
Test condition		**Ambient temp.(Dry Bulb/Wet Bulb): 7℃ /6℃, Water temp.(in/out): 30℃/35℃.
Refrigerant		R410A
Refrigerant weight	(g)	1600	2000	1600	2000
Compressor	(type)	Scroll
Compressor	(number)	1	1	1	1
Fan	(type)	Axial flow type with Nylon fan blade
	(discharging)	Horizontal		Vertical
	(number)	1	1	1	1
	(air flow)(m3/h)	3500	5000	3200	5000
Evaporator	(type)	Aluminium/Cu lamellar tube evaporator
Condenser (heat exchanger)	(type)	Coaxial coil heat exchanger (Copper Tube-in- Steel Tube)
Throttling device		Emerson thermal expansion valve
Controller		Indoor Digital Controller
Required hot water flow rate	(m3/h)	2.2	3.2	2.2	3.2
Water connection		G1"	G1"	G1"	G1"
Suggested tank capacity	(t)	2-3	2-4	2-3	2-4
Noise	dB(A)	≤56	≤58	≤56	≤58
Max. current	(A)	7.5	10	6	10
Level again electric shock		I	I	I	I
Water proof		IPX4	IPX4	IPX4	IPX4
Max. water temp.	（℃）	60	60	60	60
Operation temp. range	(℃)	-10-45	-10-45	-10-45	-10-45
Net weight	(kg)	100	120	110	145
Net size	(mm)	680X600X1055	755X595X1490	770X720X800	870X830X970
